Beadlock rims have become increasingly popular among off-road enthusiasts due to their ability to keep the tire securely mounted to the wheel, even at low tire pressures. Installing beadlock rims on your 4×4 vehicle can greatly enhance its off-road performance and provide added peace of mind during challenging terrain navigation. In this comprehensive guide, we’ll walk you through the step-by-step process of installing beadlock rims on your 4×4 vehicle.

1. Understanding Beadlock Rims

Before diving into the installation process, it’s essential to understand the basic components of beadlock rims. Unlike traditional rims, which rely on tire pressure to keep the tire seated on the wheel, beadlock rims feature an outer ring that clamps the tire bead between itself and the wheel, preventing it from coming off, even under extreme conditions.

2. Gather the Necessary Tools and Materials

Before starting the installation, gather all the required tools and materials:

  • Beadlock rim kit
  • Torque wrench
  • Socket set
  • Tire irons
  • Lubricant
  • Jack and jack stands
  • Safety goggles and gloves

3. Preparation

Begin by ensuring that your vehicle is safely elevated using a jack and supported by jack stands. Remove the existing wheels and tires from your 4×4 vehicle, and thoroughly clean the wheel mounting surface to remove any dirt, debris, or rust.

4. Install the Inner Ring

Next, carefully place the inner ring of the beadlock rim onto the wheel hub, ensuring that it aligns properly with the wheel studs. Use the provided hardware to secure the inner ring to the wheel hub, making sure to torque the bolts to the manufacturer’s specifications.

5. Mount the Tire

With the inner ring securely in place, it’s time to mount the tire onto the wheel assembly. Apply a generous amount of lubricant to the tire beads to ease the installation process. Using tire irons, carefully work the tire onto the wheel, ensuring that the beads are seated evenly around the circumference of the wheel.

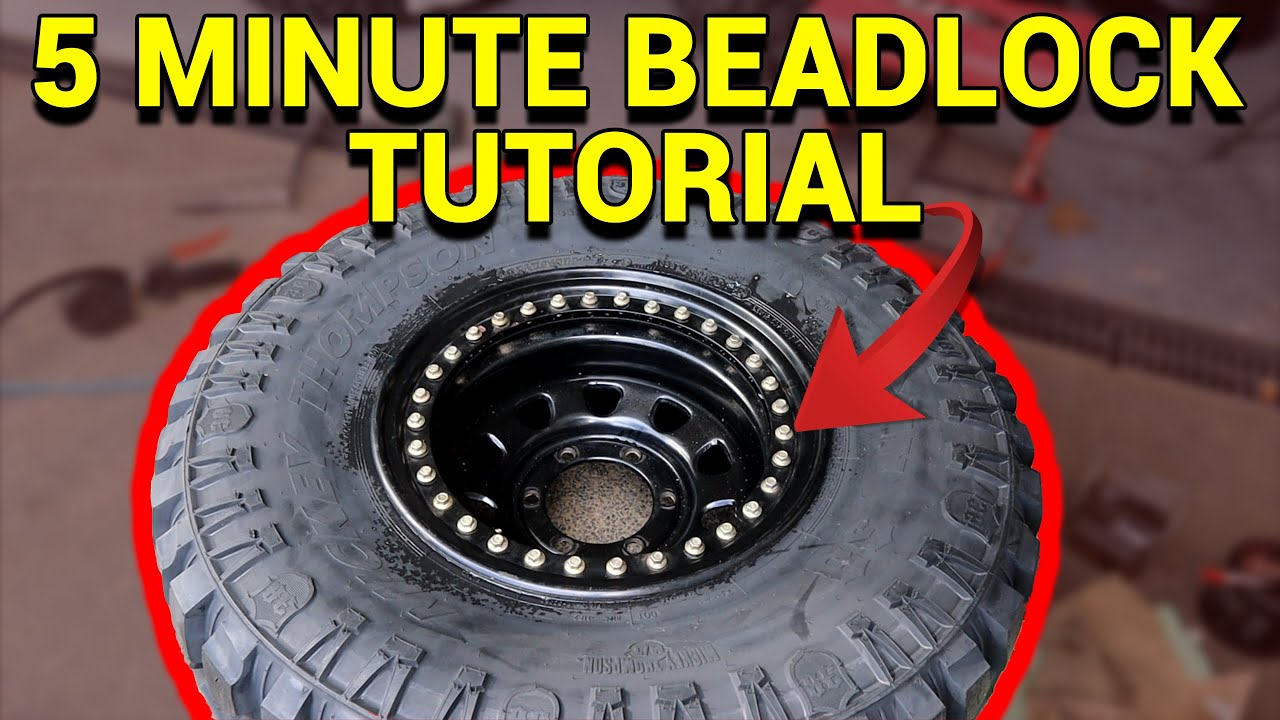

6. Install the Outer Ring

Once the tire is mounted, carefully position the outer ring of the beadlock rim over the tire beads. Align the outer ring with the inner ring, ensuring that the tire beads are sandwiched securely between the two rings. Insert the provided bolts through the outer ring and tighten them evenly using a crisscross pattern to ensure uniform clamping pressure.

7. Torque the Bolts

After all the bolts are in place, use a torque wrench to tighten them to the manufacturer’s specified torque settings. Be sure to follow the recommended torque sequence to ensure proper clamping force and prevent any uneven pressure on the tire beads.

8. Check for Proper Alignment and Tightness

Once all the bolts are torqued to specification, double-check the alignment of the outer ring and inner ring to ensure that the tire beads are securely clamped. Inspect each bolt to ensure that they are properly tightened and show no signs of loosening.

9. Reinstall the Wheels

With the beadlock rims securely installed, carefully lower your vehicle from the jack stands and reinstall the wheels onto your 4×4 vehicle. Torque the lug nuts to the manufacturer’s specifications in a star pattern to ensure even pressure distribution.

10. Test Drive and Final Inspection

Before hitting the trails, take your 4×4 vehicle for a short test drive to ensure that everything is functioning properly. Pay close attention to any unusual vibrations or handling issues that may indicate a problem with the beadlock rims. Once satisfied, perform a final inspection of the rims to ensure that all bolts are tight and secure.


Installing beadlock rims on your 4×4 vehicle is a rewarding upgrade that can significantly enhance its off-road capabilities. By following this step-by-step installation guide and exercising caution and attention to detail, you can enjoy the added traction and peace of mind that beadlock rims provide during your off-road adventures.
